Foot Traffic Counting Camera

S-ST-0467

This product is a dual-lens intelligent network camera for foot traffic counting that integrates image capture, facial recognition, foot traffic analysis, and network data transmission. It is powered by 9–60 V DC or PoE and utilizes a GPS+Beidou positioning system. Featuring an aluminum alloy housing, it offers rapid heat dissipation and a sleek, aesthetic design, with an IP68 waterproof rating and protection against surges and static electricity. It features easy installation, low power consumption, and a low failure rate. Based on deep learning algorithms, the product delivers industry-leading accuracy in foot traffic counting. It supports Wi-Fi, 4G, and RS485 communication. Utilizing a head-and-shoulders feature recognition algorithm, this product identifies head-and-shoulders features in complex scenes and employs human tracking algorithms to achieve precise foot traffic counting. It is widely applicable for counting passenger traffic in public transportation vehicles such as buses, mid-size buses, coaches, and tour buses.

Quantity:

Contact Now

add to cart

Product Features

High Counting Accuracy:

• Based on leading stereoscopic vision technology, it overcomes the limitations of traditional 2D passenger flow technology, which is easily affected by lighting and environmental conditions; it can recognize features such as people wearing hats or those who are bald.

• Recognition accuracy of 99%;

• Extensive data collection and fine-tuning ensure the product avoids miscounts in any scenario.

Wide Coverage:

• The bus passenger flow all-in-one device (stereoscopic) features a wide 180° field of view for broader coverage;

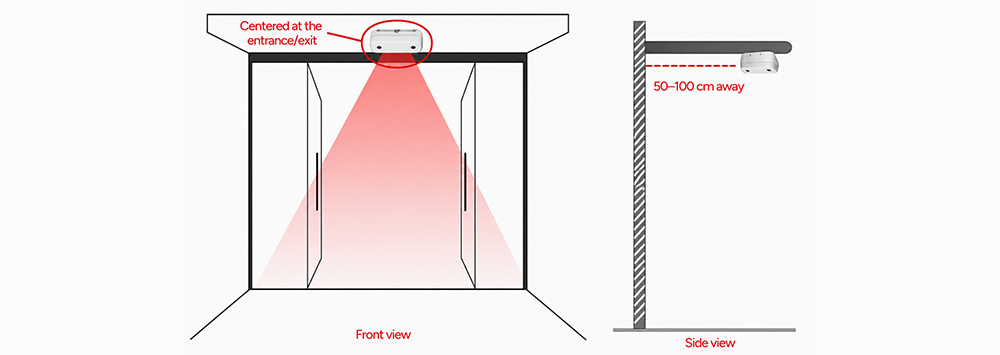

• Installation height: 1.6–4.0 m, covering a width of 0.5–4.0 m; custom lenses are available for special cases.

Network-Enabled Smart Device:

• The bus passenger flow all-in-one (stereoscopic) device features edge computing capabilities, performing passenger flow calculations locally and outputting data directly, with low network bandwidth requirements;

• Outputs real-time passenger flow statistics to meet real-time data collection and monitoring needs;

• Supports offline storage, eliminating concerns about network outages;

• Supports both static IP and DHCP modes for flexible deployment;

• Supports wireless Wi-Fi and 4G connectivity;

• Supports wireless Wi-Fi and 4G connectivity, eliminating the constraints of complex cabling;

Technical Specifications

Host Specifications	Performance Metrics
Operating System	linux
Network Transmission	Supports TCP/IP and resume-from-breakpoint functionality;
Camera Specifications	Optional focal lengths: 1.7/2.1/2.8/3.6 mm; 2.0 megapixels effective resolution, 1920×1080; optional video output resolutions of 2.0W and 1.30W pixels. Supports OSD overlay output.
Memory (DDR3)	Capacity greater than or equal to 1 GB
Computing Power	Neural network computing performance of 1.0 TOPS or higher (dedicated to AI deep learning operations; the most powerful computing capability among all-in-one devices in China, ensuring high accuracy)
Video Compression Formats	Supports both H.265 and H.264
Video Bitrate	Multi-stream, supports different bandwidth modes
Power Supply and Power Consumption	PoE power supply; also supports 9–60V wide-voltage power supply. Power consumption less than 5W
Electrostatic Protection	Supports surge protection and 20 kV electrostatic discharge protection
Operating Environment	-10°C to 60°C, humidity below 90%
Communication Interfaces	Supports Wi-Fi, 4G, RS-485 (3.81 mm terminals), RS-232, and other communication interfaces
Communication Protocols	TCP、RS485、RS232、UDP、HTTP、RTSP、RTCP、DHCP, FTP, DDNS、 PPPoE
Upgrade Methods	The device supports P2P remote video viewing, remote upgrades and maintenance, and remote debugging. It supports upgrades via both P2P remote web interface and local web interface.
Upgrade Scope	Supports independent algorithm model upgrades and firmware version upgrades
Product Dimensions	L:136mmW:60mmH:38mm

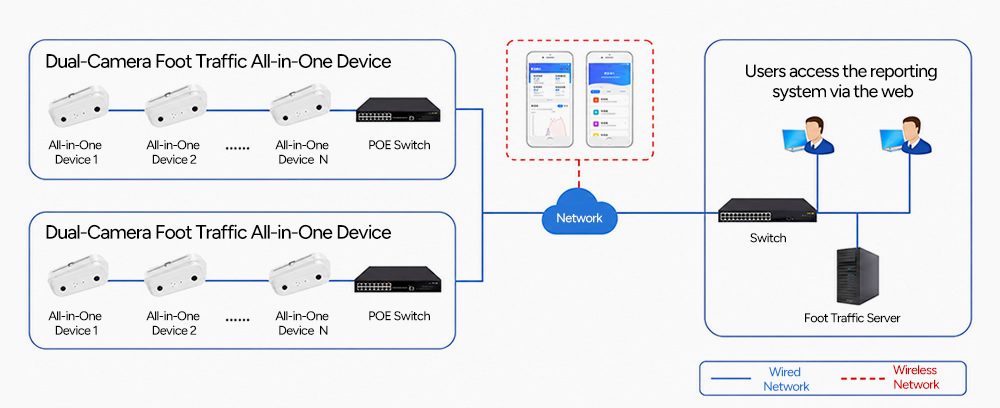

Product POE Topology Diagram
