In-Vehicle Terminal Unit
Product Advantages & Features
The product features a highly integrated design, with a high-definition display, touchscreen, and core motherboard all built into a single unit, making installation and operation more convenient.
⭐ Built-in ADAS, DMS, BSD, and facial recognition algorithms; camera channels can be freely configured to select any algorithm.
⭐ Linux operating system;
⭐ Supports 4G connectivity and satellite positioning;
⭐ Supports 5-channel 1080P video recording
⭐ Supports 808/905+1078 ministry standards;
⭐ Supports real-time video, historical video playback, emergency alerts, TTS text message dissemination, and other functions;
⭐ Supports alerts for sudden acceleration, sudden deceleration, and sharp turns, as well as collision alerts
⭐ Supports low-power sleep mode after ACC OFF, with remote wake-up capability
⭐ Supports parking monitoring mode after ACC OFF, with pedestrian detection and alerts in any designated area
⭐ Supports time-lapse recording after ACC OFF
⭐ Voice support for intercom and monitoring
⭐ Supports dual IP reporting
Technical Specifications
| No. | Technology Name | Technical Specifications |
1 | User Interface | Supports app-based user interface, web-based user interface, and touchscreen parameter configuration; |
2 | CPU | 32-bit RISC CPU 1GHz，1T NPU |
3 | Video Input | 5 AHD channels at 1080P/720P |
4 | Video Output | Built-in 720P HD display |
5 | Preview Function | Single-channel and 5-screen tiled preview; supports manual/event-triggered full-screen display |
6 | AI Algorithms | ADAS/DSM/BSD |
7 | Recording Modes | Default automatic recording; supports ignition-triggered recording, alarm-triggered recording, time-lapse recording, and alarm clips |
8 | Communication Interfaces | 2 RS232 ports; expandable to support card readers, fuel level sensors, etc. (slots reserved on the motherboard) |
9 | Audio Recording Mode | Synchronized audio and video recording |
10 | Operating Environment | -20℃to +70℃ |
11 | Security Management | Password-protected access; web-based menu under development |
12 | Dimensions | 26.7*17 .5*6 .6 (CM) |
13 | Net Weight | 1.45 (KG) |

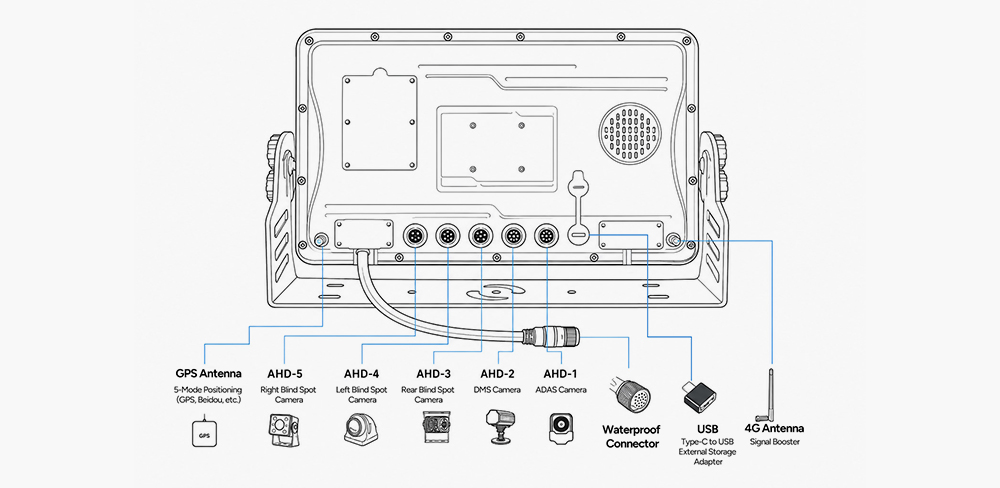

Product Interfaces
In-Vehicle Terminal UnitThe TS-DP0102 In-Vehicle Terminal is a four-channel all-in-one device that uses four high-definition cameras installed inside and outside the vehicle to simultaneously capture footage of the vehicle’s surroundings. This footage is transmitted in real time to the terminal, where AI-powered deep learning identifies pedestrians in blind spots around the vehicle, marks them, and issues voice alerts. The system also provides alerts for fuel theft after the vehicle has been parked. With this system, drivers can clearly see obstacles and pedestrians around the vehicle, effectively reducing incidents such as scrapes and collisions. It also records driving footage to help resolve disputes over minor paint scratches.TS-DP0102Send Inquiry
